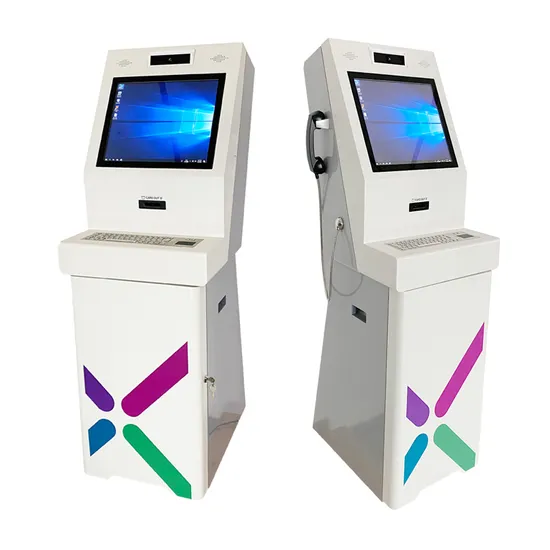

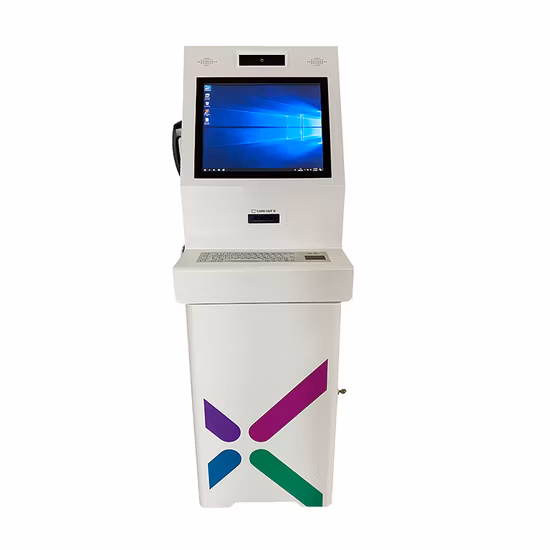

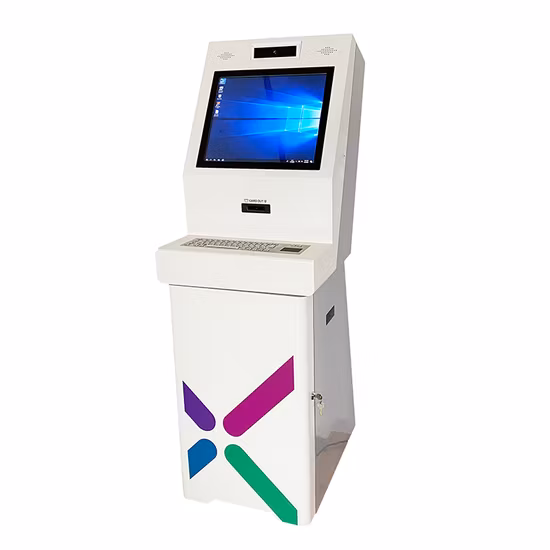

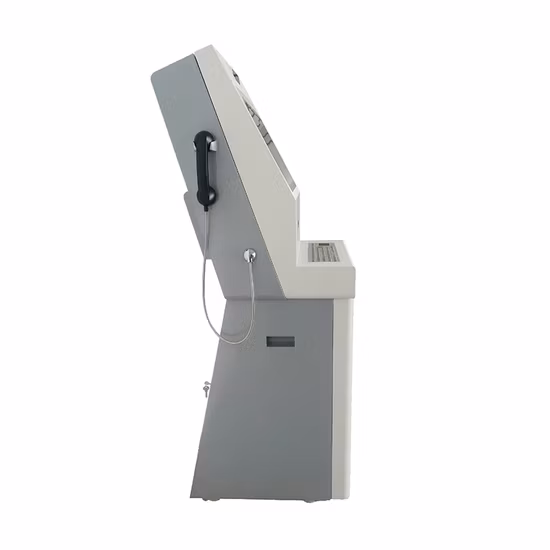

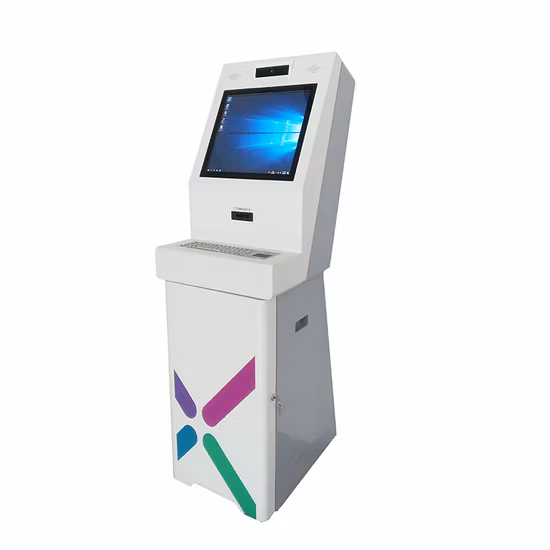

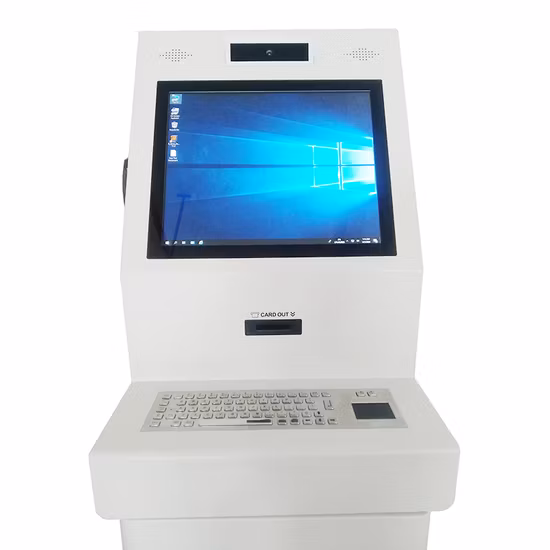

Card Issuing Kiosk

Basic Info

Model NO.	MS90
Automatic Grade	Full-Automatic
Warranty	1 Year
Throughput	1 Card/Minute
Card Dimension	86* 54mm
Card Thickness	0.76mm-1mm
Total Power	3kw
Power Supply	~220V 50/60Hz
Ambient Temperature	0-40degree
Air Supply	Not Required
Humidity	15~90%
Weight	50kg
Transport Package	Packed in Strong Fumigated Wooden Case
Specification	CE
Trademark	Mingsen
Origin	China
HS Code	8479899990
Production Capacity	20, 000 Sets/Year

Product Description

This kiosk is for banking card instant issuing.

• Issue high-quality encoded, embossed & indented financial personalized card on demand.
• It can supplement same number card or issue new card.
• High efficiency. Decrease card issuing time from days to minutes. Reduced mailing expenses for card distribution.
• High flexibility. It can be placed in branches, stores or even remote area.
• High-security. Soft dog secures data and cards in hoppers been locked up. Machine will alarm if issued card not been taken.
• Connect your business to card issuance opportunities in the fast-rising self-service economy with hardware that adapts to a wide range of desktop environments.

Specification:* Designed for banking card self service instant card making and issuance, it's applied for different cards (credit card, financial gold card, social security card etc.)* Full function all in one kiosk. * Smallest size in the industry. * Maximum card storage could be 4,000 cards.* High security, high efficient, high integration for card making, replacement, distribution and smart management.* It provides a solution for multiple platform, branch creation and good competition for internet financial.* Instant card making and issuance.* Smart card storage.* Mis-sequence card distribution.* Sequence card distribution.* Devouring card distribution.* Old card return.* Card storage.* Card transport mechanism.* Thermal transfer printing.* Magnetic encoding.* Chip contact/contactless encoding* Embossing & indent.* Tipper.
Modules: 1. Anti-peeping mirror2. Speaker3. Adjustable Camera, two leans (optional)4. 19" Capacitive Touch Screen5. ID card input 6. Receipt (optional)7. Card input8. Contactless card reader (optional)9. Keyboard10. Finger printer sensor (optional)11. Barcode reader (optional)\12. chip reading, magnetic strupe reading;13. card storage (type A 1440 cards storage; type B 2160 cards storage)14. card transporting trolly.15. card feeding hopper with capaccity of 150 cards.16. card rejecting hopper.17. card empty hopper.18. card embossing & indent with complete set of EMV fonts.19. tipping.20. card double sides multicolor thermal printing.

Specification:

Brand name	Mingsen Technologies
Color	customized
Logo	customized
Certificate	CE/CCC
Operating System	Win10
Service	ODM / OEM
Overall dimensions	customized
Weight	customized
